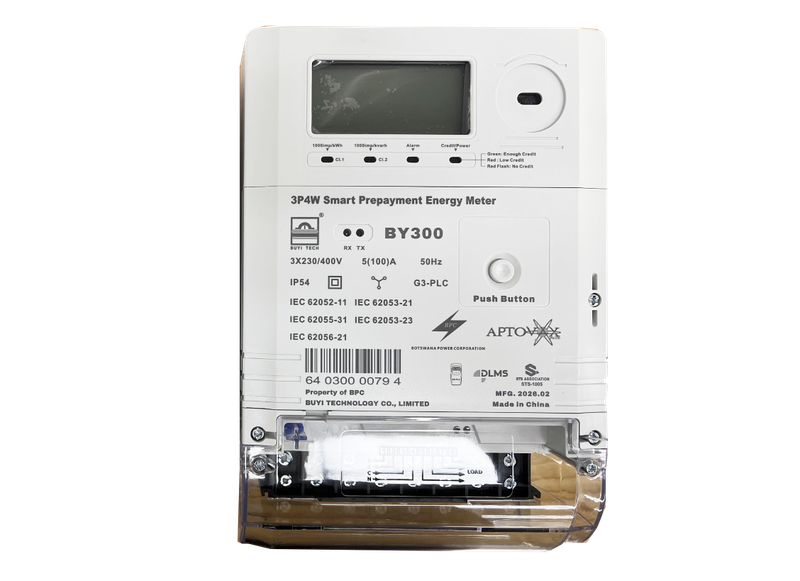

Three Phase Split Prepaid Electricity Meter

BY300C Three Phase Smart Prepayment Energy Meter takes 20-digit STS TOKEN as the recharge medium. The data is transmitted using a 20-digit numeric code as per international encryption protocol STS (Standardized Transfer Specification) or Currency Transfer Specification (CTS), which enabling them to automatically shut off the customer’s power supply in the event of fraudulent manipulation (opening of the terminal cover, etc.) and exceeding of power.

It offers high security features including main and terminal cover removal detection and magnetic field manipulation detection protect the meter and module from fraud or tampering.

The BY300C has the option of serial and optical IEC 62056-21 communications, which allows the meter registers and security data to be read electronically from a laptop or hand-held device, greatly reducing the possibility of manual meter reading errors. It's flexible between post payment mode and prepayment mode, and it offers Customer Interface Unit (CIU) as an optional device.

The BY300C includes all the high functionality: four-quadrant metering; active, reactive, and apparent energy and demand measurements; standard event logs and time-of-use metering; LCD with backlight provides a flexible interface to the user for displaying meter data; and non-volatile memory for both billed and non-billed interval data
